PCI-1484E

PCI-1484E is a general-purpose communication card, intended for PCI Express bus. The card provides four isolated RS-422/485 ports.

PCI-1484E card is based on MCS9904CV controller (manufacturer ASIX Electronics Corp.) that provides PCI Express bus interface, four efficient UARTs (similar to the 16C950 standard) with DMA FIFO 2x 128B in one circuit.

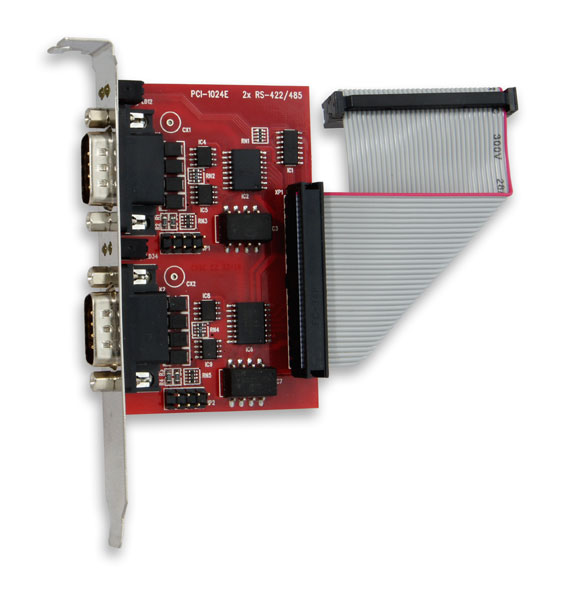

The first two ports at the PCI-1484E card lead to the D-Sub 9 connectors located on the card mounting bracket, the other two ports are accessible via the expansion card PCI-1024E, fitted with the interface circuits located in the next slot.

Ports provide the optical isolation. Optional surge arresters (ESD-X4) can be added to protect isolation barrier against breakdown caused by induced overvoltage.
For more information see safety guidelines for preventing overvoltage damage.

Like any other TEDIA products, the RS-422/485 output circuits provide surge protection (TVS diodes) and termination impedances with fail-safe bias resistors, as advised by many standards (e.g. Profibus).

Useful feature are LED indicators on the card mounting bracket (a pair for every port) providing a comfortable check of the line activity.

Delivery details

The product packet includes the PCI Express card and expansion card, all documentation and software are available in the Download section.

Specifications

Type PCI-1484E
Number of ports 4
Ports type RS-422/485
Communication controller MCS9904CV (ASIX Electronics Corp.)
see note below this table
Transfer rate up to 921.6kBd
Supported signals RS-422: TXD+ (B), TXD- (A), RXD+ (B), RXD- (A)
RS-485: TXD/RXD+ (B), TXD/RXD- (A)
Transceiver type ADM4853 (Analog Devices)
RS-422/485 operating modes RS-422, RS-422 multimaster, RS-485
RS-422/485 flow control automatic (ADFC), DTR
RS-422/485 ESD
surge protection
300A, 8/20 µs, IEC 801-5 (TVS diodes 5V8/600W)
Isolation voltage 1kVDC (600VDC when ESD-X4 used)
Isolation protection Surge arrester CG5-600L
(ESD-X4 option)
RS-422/485
termination impedance
120Ω/0.7V
Bus type PCI Express (x1, Gen 1)
Dimensions approx. 85x105 mm (PCI-1484E)
approx. 85x55 mm (PCI-1023E)
Weight
(expansion card included)
approx. 150 g
Weight and dimensions
of product packaging
approx. 210 g
cardboard box approx. 180x130x40 mm
Note: The first generation of cards (discontinued in 2013) was equipped with the MCS9901CV controller (MosChip Semiconductor), the second generation is equipped with the MCS9904CV controller (ASIX Electronics Corp.); both types have almost identical properties.
